READ THIS CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT
OPERATING PRESSURE RANGE - 30 TO 100 PSI.
TEMPERATURE RANGE - +32 DEGREES TO +160 DEGREES F

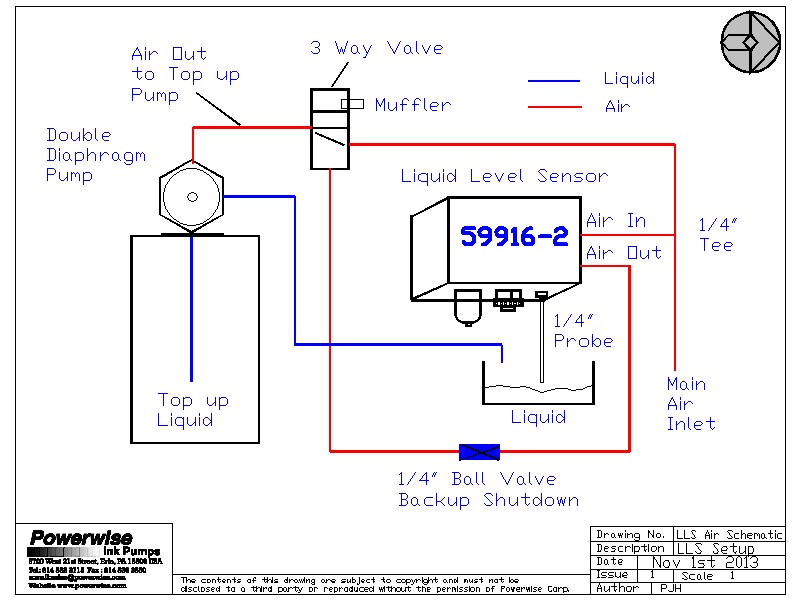

INSTALLATION AND ADJUSTMENT : Refer to Schematic Below - Link to full size sheet (LINK)
Red Line is Airline *Set up the
unit using ¼” O.D. tubing with ¼” MPT x ¼” O.D. push-lock fittings for easy

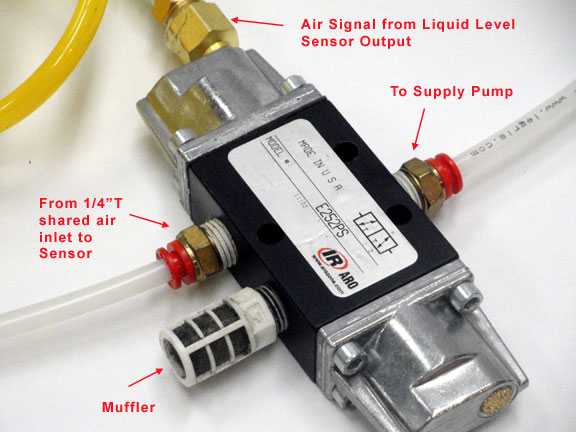

assembly. Setup Air Valve as picture shown below on the left
Blue Line is Liquid *Use a ¼”
Female x Female ball valve for a manual shut-off. (This will stay open unless shutdown is required)
*Use ¼” O.D.
rigid brass tube for short sensor tube requirements & use ¼” O.D. poly tube
for longer distance requirements. Do not to exceed 25 feet.
*Use the
sensing adjustment screw in the LLS box to obtain your desired liquid levels. This may take
multiple adjustments before reaching the proper levels.
