Model 9090NGBE Powerwise Ink Pump Electric Motor Driven Variable Speed Peristaltic Ink Pump
This specification is for USA & European Market
Suitable for hazardous areas.

Standard Flexographic and Gravure ink applications
0.5HP/037Kw Explosionproof Motor 230/460.3.50/60 Voltage
Adjustable speed range 0-250 RPM
Forward/Reverse Using Handwheel
Flow Rate 0 - 2.5 GPM (0 - 9.35 LPM)
This pump will handle high viscosity fluids and is ideal for heavy inks and adhesives.

More Pictures of this pump

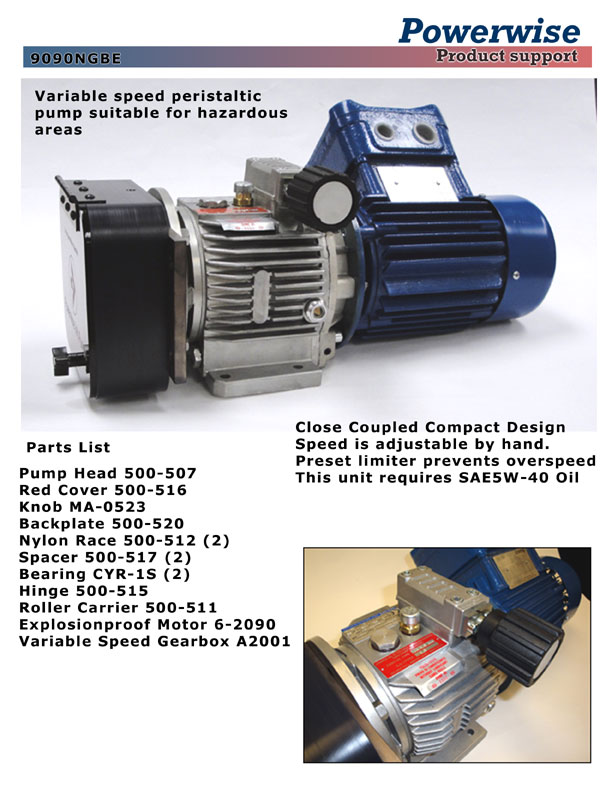

Picture 1
Picture 2

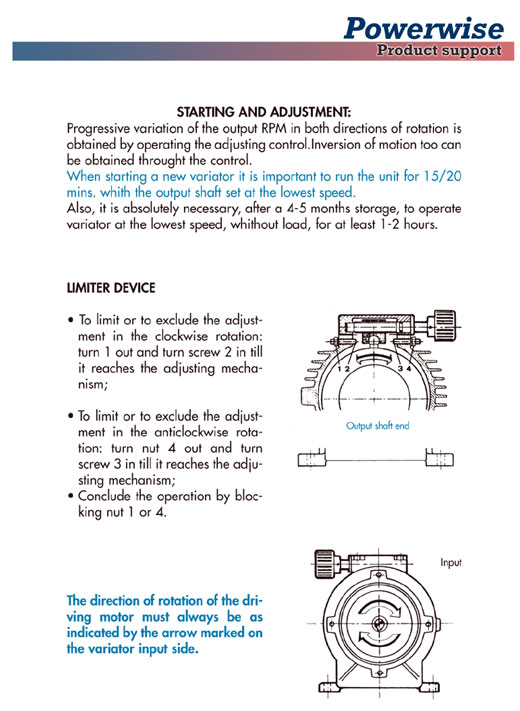

Starting & Adustment (Link)

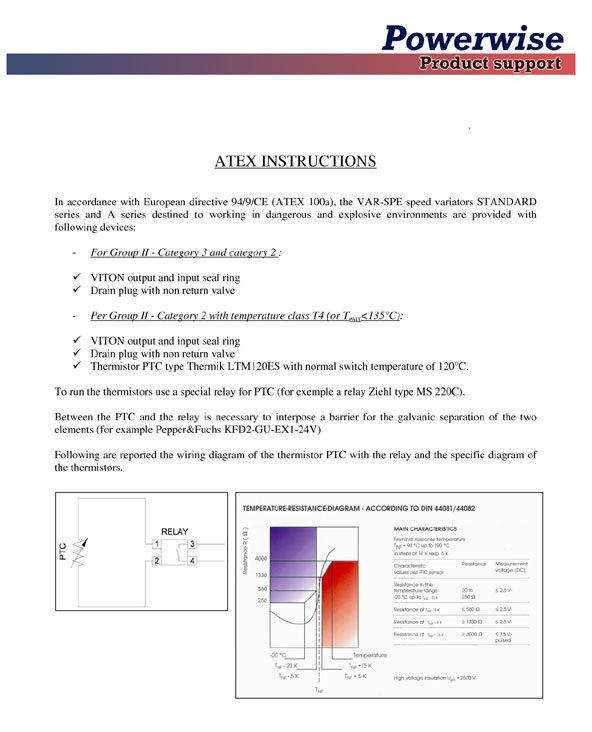

Atex Instructions (Link)

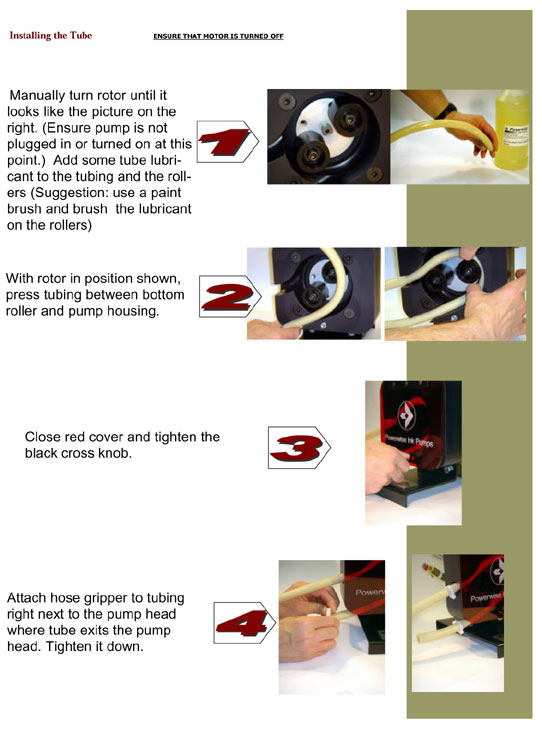

Loading the Tube data sheet (Link)

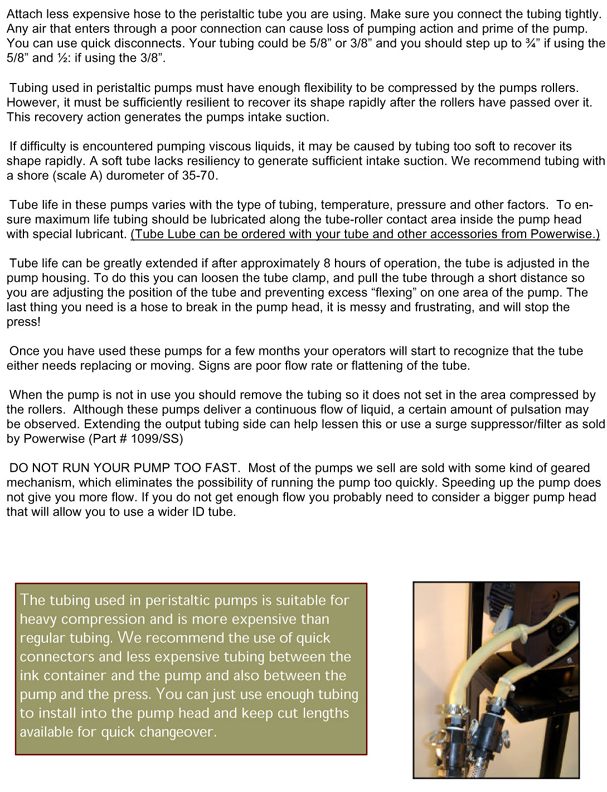

General notes concerning the tube.(Tube Notes)

Videos
Operating the Pump
Tubing Selection & Use
Loading the Tube on a peristaltic Pump
